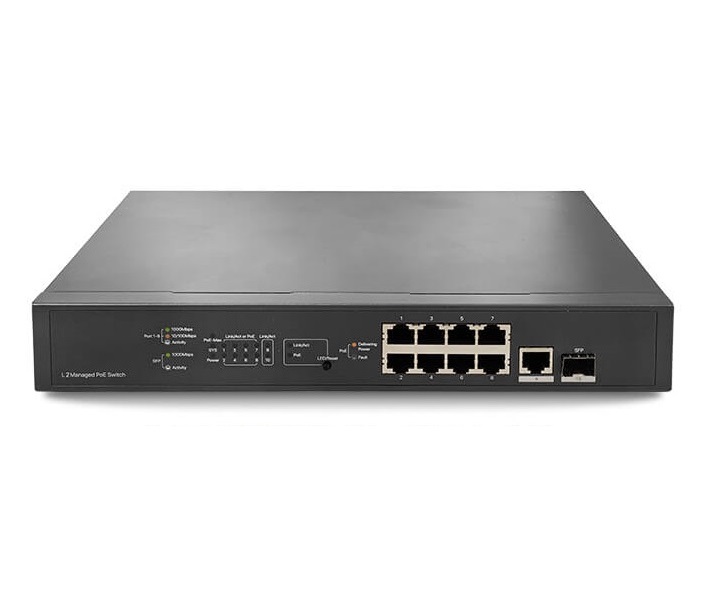

Name: 10 prievadų 8 PoE prievadų komutatorius Utepo UTP3-3310TS-PSB-L2
SKU: SWITCHUTP3310TSPSBL2
Price: 195.69 EUR
Availability: InStock

10 prievadų 8 PoE prievadų komutatorius Utepo UTP3-3310TS-PSB-L2

€195.69

8*10/100/1000Base-T RJ-45 (Auto MDI/MDIX) PoE+ prievadas
1*10/100/1000Base-T RJ-45 (Auto MDI/MDIX) prievadai
1*1000Base-X SFP prievadas
PoE pajėgumas: 130W.

Pagrindinis
ĮrenginysUTP3310TS-PSB-L2
Downlink prievadai8*10/100/1000Base-T PoE+ RJ-45 (Auto-MDI/MDI-X)
Uplink prievadai1*10/100/1000Base-X RJ45
Led indikatoriai1*Power, power supply indicator
Dydis294mm*179.6mm*44mm
Įeinanti įtampa100~240V AC, 50~60Hz
MedžiagaMetal shell
MontavimasRack/desktop/wall mounted
StandartaiIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s
Persiuntimo režimaiStore and Forward
MAC adresų lentelė16k, support auto learning
Perjungimo talpa20Gbps/non-blocking
Paketų persiuntimo greitis14.4Mpps
PoE standartasIEEE 802.3af/at
PoE maitinimo tipasEnd-span
PoE išdėstymas1/2/4/5(+), 3/6/7/8(-)
PoE biudžetas30W max for each port, 130W max for whole switch
Port Lighting Protection6kV
Darbo sąlygos temepratūra0℃~45℃, 10%~90% (Non-condensation)
Saugykla-40℃~70℃, 5%~90% (Non-condensation)
PoE valdymasPort PoE configuration and power supply with priority
SaugumasARP receiving limit
VLANIEEE 802.1Q VLAN
DHCPDHCP Relay, DHCP Snooping
MaršrutasVLAN-based routing
LAGStatic aggregation, LACP dynamic aggregation
Aprėpiantys protokolaiIEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol),
MulticastIGMP Snooping V1/V2/V3
Prievado atvaizdavimasSupport N: 1 port mirroring
QoSSP (Strict Priority)
ACLSupport MAC ACL and IP ACL
Valdymas ir priežiūraSupport FTP/TFTP/HTTP upgrade
Vizualizacijos valdymasTOPO discovery based on ONVIF
