Modelis |
UTP7624GS-L3 |
|
Gigabit SFP prievadai |
24*1000 Base-X SFP(Mini-GBIC) |
|
Gigabit variniai prievadai |
8* 10/100/1000Base-T RJ45(Auto-MDI/MDI-X) combo |
|
10G SFP+ prievadai |
4*1000/10G Base-X SFP+ |
|
Konsolės prievadas |
1*RJ45-R232 serial port(115200,8,N,1) |
|
OOB prievadas |
1*10/100Base-TX RJ45(only to web management) |
|
Default IP:192.168.1.200 name:admin password:admin |
|
|
Init raktas |
Short press restart |
|
>5s press recovery to default |
|
|
Standartai ir protokolai |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
|
Perkėlimo pajėgumas |
128Gbps / non-blocking |
|
Paketų perkėlimo greitis |
95.2Mpps@64 bytes |
|
Perkėlimo rėžimai |
Store-and-Forward |
|
Paketų buferis |
12Mbit |
|
MAC adresų lentelė |
16K |
|
Jumbo kadras |
9K bytes |
|
Atsparumas įtampai |
6KV Execute: IEC61000-4-5 |
|
ESD atsparumas |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute: IEC61000-4-2 |
|
|
Galios modulis |
Input:100~240VAC 50/60Hz(auto-sensing) Output:DC12V150W |
|
Support redundant duplex power module(1 module inside default,another module bought extra) |
|
|
Energijos suvartojimas |
60W |
|
Veikimo temperatūra |
-10-50℃ |
|
Laikymo temperatūra |
-40-85℃ |
|
Atsparumas drėgmei |
5%-95%(non-condensing) |
|
Matmenys（L×W×H） |
442mm×320mm×44.5mm |
|
Svoris |
5.65kg |
|
Certifikatai |
CE, FCC, ROHS |
|
Programinės įrangos funkcijos |
|
|
Prievadų valdymas |
Support port enabling and disabling |
|
Support port speed settings |
|
|
Support port full-duplex mode |
|
|
Support IEEE802.3x flow control |
|
|
Support Jumbo Frame |
|
|
Support port name modification |
|
|
VLAN |
Support of 4K VLAN |
|
Support 802.1Q VLAN protocol |
|
|
Support QINQ |
|
|
Support GVRP dynamic VLAN registration |
|
|
Support VLAN based on portprotocolMAC |
|
|
QoS |
Support COS classification base on 802.1p |
|
Support QoS base on DSCP |
|
|
Support 8 priority queues |
|
|
Queue scheduling: SP, WRR, SP+WRR |
|
|
Support 802.1p CoS/DSCP priority |
|
|
Multi-brocast |
Support SNMPV1 / V2 / V3 protocols |
|
Support IGMP Snooping |
|
|
Support MLD-snooping |
|
|
Apsauga |
Supports IP, MAC, port, VLAN binding combinations |
|
Support MAC address auto-learning, aging and filtration |
|
|
Support port isolation, port speed limit |
|
|
Support STP RSTP MSTP，Fast-Ring |
|
|
Support 5 groups of link aggregation |
|
|
Support LLDP ,Smart-Link ,DLDP |
|
|
Support 802.1X |
|
|
ACL |
Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number |
|
Support time-range management |
|
|
Sistemos valdymas |
Web-based GUI and CLI management |
|
Support FTP / TFTP / HTTP load upgrade |
|
|
Support traffic statistics |
|
|
Support MAC address table query |
|
|
Support IP address, DNS server modifications |
|
|
Support user name and password modification |
|
|
Support for history, log management |
|
|
Support System Configuration Backup |
|
|
Support to recover the default factory settings on reboot |
|
|
L3 valdymas |
Support IPV4 static route setup |
|
Support RIP V1/2 on IPV4 |
|
|
Support OSPF V1/V2 |
|
|
Support ISIS on IPV4 |
|
|
Support BGP on IPV4 |
|
|
Support static ARP Add,delete,burn-in time sutup/check |
|
|
Support static NDAdd,delete,burn-in time sutup/check |
|
|
Support VRRP V1/2/3 virtual redundant route protocol |
|
|
Support group-brocasting PIM,IGMP V1/V2/V3,MLD(IPV4) |
|
|
Support DHCP client,server |
|
|
Support relay repeater,DHCP snooping |
|
|
Support duplex transfer check mechanism |
|
Išparduoda

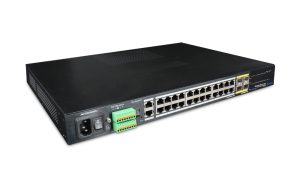

24 prievadų 24 SFP prievadų komutatorius UTEPO UTP7624GS-L3
€1,035.61
- 24*1000 Base-X SFP(Mini-GBIC)
- 8* 10/100/1000Base-T RJ45(Auto-MDI/MDI-X) combo
- 4*1000/10G Base-X SFP+
Out of stock
Description
Additional information
| Weight | 4.659 kg |
|---|---|
| Gamintojas |
