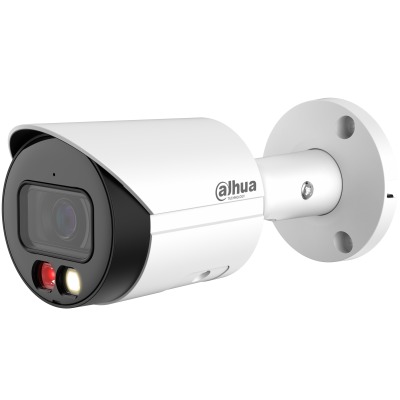

Name: Dahua Bullet IPC-HFW2449S-S-IL-0280B F2.8 (Balta, 4MP, ~95°, IR+LED 30m, IP67, PoE)
SKU: DAHIPCH2449SSIL0280B
Price: 165.00 EUR
Availability: InStock

Dahua Bullet IPC-HFW2449S-S-IL-0280B F2.8 (Balta, 4MP, ~95°, IR+LED 30m, IP67, PoE)

€165.00

Tipas: IP kamera
Modelis: IPC-HFW2449S-S-IL-0280B
Prekės ženklas: Dahua
Serija: WizSense
Rezoliucija: 4 MP
Objektyvas: 2.8 mm (95°)
Apšvietimas: Dviguba šviesa, IR LED iki 30 m
Vaizdo korekcija: 120 dB WDR, 3D NR, HLC, BLC
Atmintis: SD kortelė iki 256 GB
Atsparumo klasė: IP67
Maitinimas: PoE
Kompresija: H.265+

Pagrindinis
Sensorius1/2.9″ CMOS
Maks. rezoliucija2688 (H) × 1520 (V)
ROM128 MB
RAM128 MB
Skenavimo sistemaProgressive
Elektroninis užrakto greitisAuto/Manual 1/3 s–1/100,000 s
Min. apšvietimas0.006 lux@F1.6 (Color, 30 IRE), 0.0006 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N santykis>56 dB
Apšvietimo atstumasup to 30 m (98.43 ft) (IR), up to 30 m (98.43 ft) (Warm light)
Apšvietimo valdymasAuto; Manual
Apšvietimo skaičius1 (IR LED), 1 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lęšio tipasFixed-focal
Lęšio montavimasM12
FOV2.8 mm, 3.6 mm
Maks. diafragmaF1.6
FOV2.8 mm: H: 95°, V: 52°, D: 114°; 3.6 mm: H: 78°, V: 41°, D: 94°
Diafragmos valdymasFixed
Artimiausias fokusavimas2.8 mm: 0.9 m (2.95 ft), 3.6 mm: 1.6 m (5.25 ft)
DORI atstumas2.8 mm: Detect 63.6 m (208.66 ft), Observe 25.4 m (83.33 ft), Recognize 12.7 m (41.67 ft), Identify 6.4 m (20.99 ft); 3.6 mm: Detect 85.4 m (280.18 ft), Observe 34.2 m (112.20 ft), Recognize 17.1 m (56.10 ft), Identify 8.5 m (27.89 ft)
IVS (Perimeter Protection)Intrusion, tripwire (supports classification and accurate detection of vehicle and human)
Išmanioji paieškaWorks with Smart NVR for refined intelligent search, event extraction, and merging to event videos
Vaizdo suspaudimasH.264H, H.265, H.264, H.264B, MJPEG (Only supported by the sub stream)
Išmanusis kodekasSmart H.265+, Smart H.264+
Vaizdo kadrų dažnisMain stream: 2688 × 1520@(1–20 fps)/2566 × 1440@(1–25/30 fps), Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) (*Max frame rates per stream; multiple streams subject to total encoding capacity)
Srauto pajėgumas2 streams
Rezoliucija4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bitų greičio kontrolėCBR/VBR
Vaizdo bitų greitisH.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
Dienos/nakties režimasAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Baltos spalvos balansasAuto, natural, street lamp, outdoor, manual, regional custom
Stiprinimo valdymasAuto, Manual
Triukšmo mažinimas3D NR
Judesių aptikimasOFF/ON (4 areas, rectangular)
Intereso sritisYes (4 areas)
Išmanusis apšvietimasYes
Vaizdo rotacija0°/90°/180°/270° (Supports 90°/270° with 2688 ×1560 resolution and lower)
VeidrodisYes
Privatumo maskavimas4 areas
Integruotas mikrofonasYes
Garso suspaudimasG.711a, G.711Mu, PCM, G.726
Alarm EventsNo SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, SMD, voltage detection, security exception
Tinklo prievadasRJ-45 (10/100 Base-T)
SDK ir APIYes
ProtokolaiIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
SuderinamumasONVIF (Profile S/Profile G/Profile T), CGI
Naudotojas/prievadas6 (Total bandwidth: 36 M)
SaugyklaFTP, SFTP, Micro SD card (max. 256 GB)
NaršyklėIE, Chrome, Firefox
Valdymo programinė įrangaDSS, DMSS
Mobilioji programaiOS, Android
Kibernetinis saugumasConfiguration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, syslog, Video encryption, 802.1x, IP/MAC filtering, HTTPS, Trusted upgrade, Trusted boot, X.509 certification support
SertifikataiCE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Maitinimas12 VDC/PoE (802.3af)
Energijos sunaudojimasBasic: 2.1 W (12 VDC), 2.5 W (PoE); Max. (H.265 + intelligence + WDR + warm light): 4.4 W (12 VDC), 5.2 W (PoE)
Darbo sąlygos (temperatūra)–40 °C to +60 °C (–40 °F to +140 °F)
Darbo sąlygos (drėgmė)≤95%
Sandėliavimo sąlygos temperatūra–40 °C to +60 °C (–40 °F to +140 °F)
ApsaugaIP67
Korpuso medžiagasMetal
Produkto dydis166.2 mm × 70 mm × 70 mm (6.54″ × 2.76″ × 2.76″) (L × W × H)
Svoris be įpakavimo0.48 kg (1.06 lb)
Svoris su įpakavimo0.59 kg (1.30 lb)
