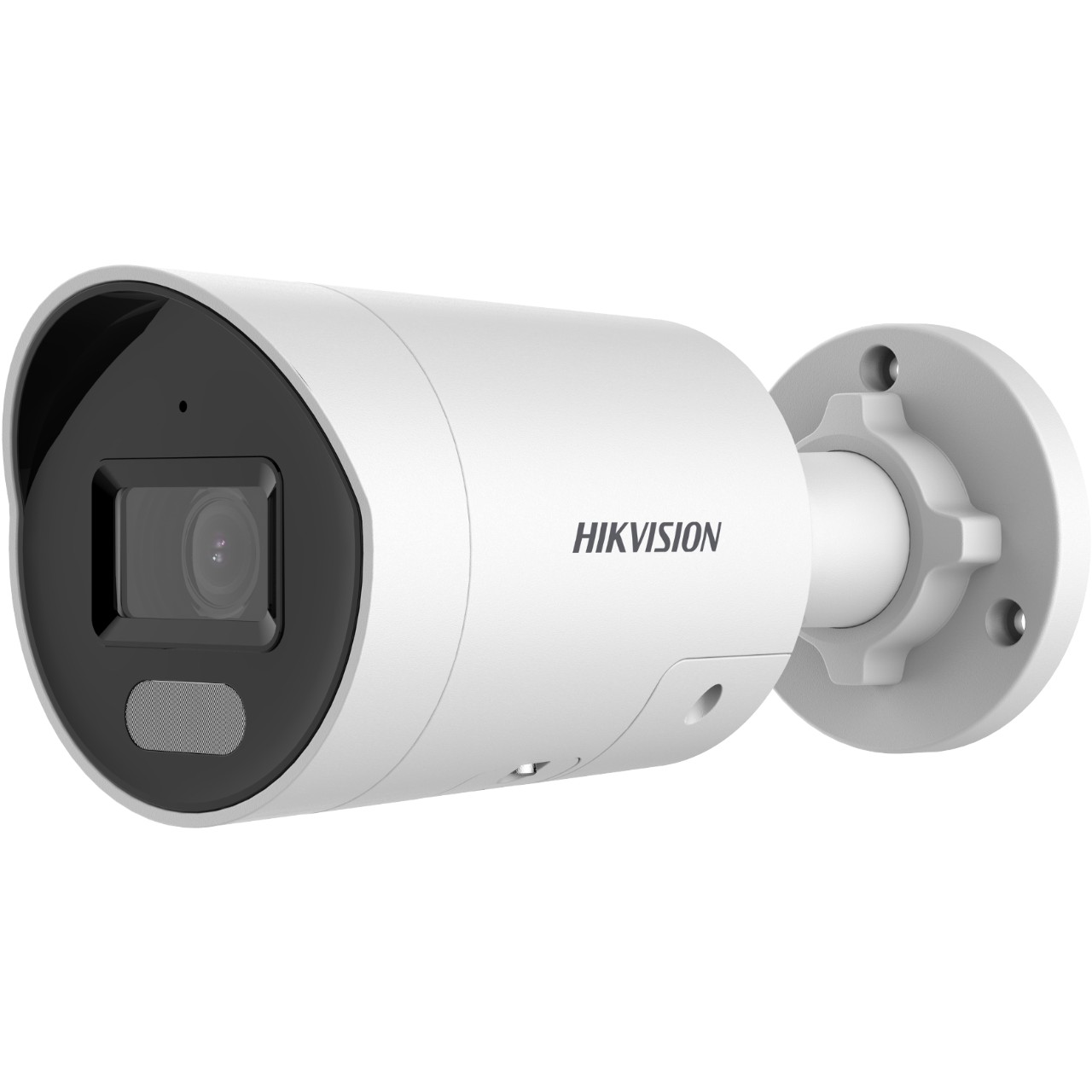

- Kamera
- Sensorius1/1.8″ Progressive Scan CMOS
- Maks. raiška2688 × 1520
- Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Užrakto greitis1/3 s to 1/100,000 s
- Kampo pasirinkimasPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lęšiai
- Židinio nuotolis & FOV
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7°
- Lęšių montavimasM16
- Iris tipasFixed
- DiafragmaF1.0
- Židinio nuotolis
2.8 mm: 3.1 m to ∞
4 mm: 5.4 m to ∞
6 mm: 12.1 m to ∞
- DORI
- DORI
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m
- Apšvietimas
- Pagalbinės šviesos tipasWhite Light
- Pagalbinės šviesos nuotolisUp to 40 m
- Išmani pagalbinė šviesaYes
- Vaizdo įrašymas
- Pagalbinė šviesa
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Pagalbinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Tretinis srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Vaizdo bitų dažnis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Bitų dažnio kontrolėCBR/VBR
- SVCH.265 and H.264 encoding
- ROI1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimasG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Garso pavyzdžių ėmimo dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Aplinkos triukšmo filtravimasYes
- Tinklas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Naudotojas/transliuotojasUp to 32 users. 3 user levels: administrator, operator and user
- ApsaugaPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Tinklo saugykla
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- KlientasiVMS-4200, Hik-Connect, Hik-Central
- Internetinė naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Nuotraukos
- Nuotraukų parametrų keitimasYes
- Nuotraukų nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Dienos/nakties keitimasAuto, Schedule
- WDR130 dB
- SNR≥ 52 dB
- Nuotraukų gerinimasBLC, HLC, 3D DNR
- Sąsajos
- Eterneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė saugyklaBuilt-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB
- Įmontuotas mikrofonasYes
- Įmontuotas garsiakalbis1.2 W, 10 cm: 95 dB
- Įspėjamasis signalasVisual alarm
- Atkūrimo mygtukasYes
- Įvykiai
- Paparsti įvykiaiMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Išmanūs įvykiai
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
- SujungimasUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output
- Išmanaus mokymosi funkcijos
- Veidų atpažinimasYes
- Pagrindinis
- Galia
12 VDC, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A , max. 7.5 W
- MatmenysØ74.4 mm × 179.2 mm (Ø2.9″ × 7.1″)
- Pakuotės matmenys234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
- SvorisApprox. 510 g (1.1 lb.)
- Svoris su pakuoteApprox. 760 g (1.7 lb.)
- Laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Paleidimo ir veikimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Patvirtinimai
- EMC
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
- Saugumas
UL: UL 60950-1;
CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU;
WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013
