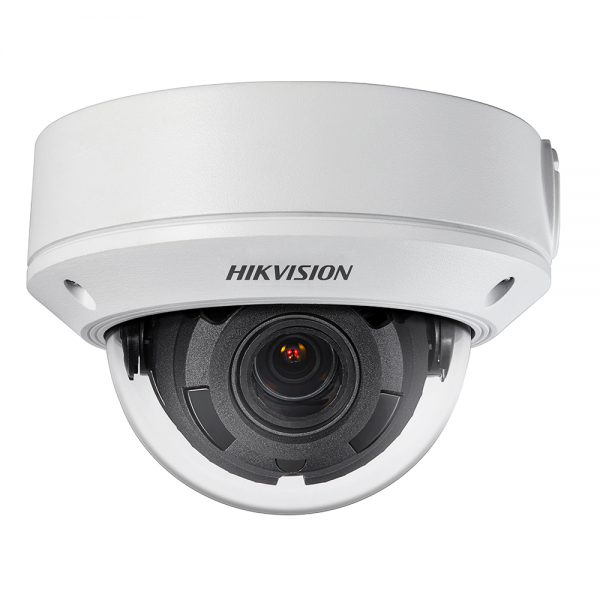

Name: Hikvision dome DS-2CD1743G2-IZ F2.8-12 (balta, 4 MP, 30 m. IR)
SKU: KIPDS2CD1743G2IZ
Price: 340.29 EUR
Availability: InStock

Hikvision dome DS-2CD1743G2-IZ F2.8-12 (balta, 4 MP, 30 m. IR)

€340.29

Lęšis
Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
Lęšio montavimasØ14
Rainelės tipasFixed
DiafragamaF1.6

Vaizdas
Pagrindinis srautas
50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Region of Interest (ROI)1 fixed region(s) for main stream

Garsas
Garso suspaudimas-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Garso bitų greitis-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis-S: 8 kHz/16 kHz
Pašalinių garsų šalinimas-S: Yes

Internetas
ProtokolaiTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
SaugumasPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
KlientasiVMS-4200,Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimasAuto,Schedule,Day,Night
Wide Dynamic Range (WDR)120 dB
Nuotraukų pagražinimasBLC,HLC,3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Garsas
-S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

-S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija-S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)

Pagrindinis
Sistemos parametrai
12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
MedžiagaMetal
Dydis

Ø141 mm × 99.9 mm (Ø5.6 × 3.9″)”
Pakuotės dydis140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
SvorisApprox. 820 g (1.8 lb.)
Svoris su įpakavimuApprox. 1200 g (2.6 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
KalbaEnglish, Ukrainian
Pagrindinės funkcijosHeartbeat,anti-banding,mirror,password protection,privacy mask, watermark
