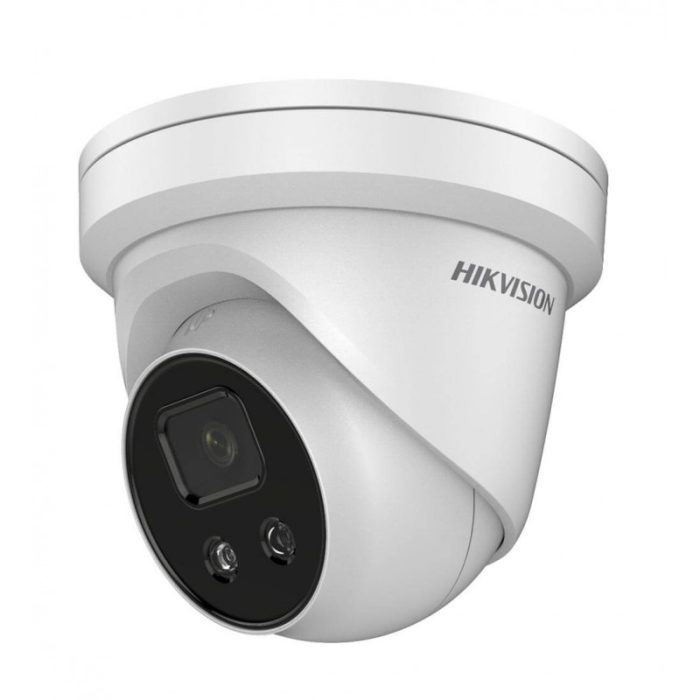

Name: Hikvision dome DS-2CD2386G2-IU F2.8 (balta, 8 MP, 30 m. IR, AcuSense)
SKU: KIPCD2386G2IUF2.8
Price: 364.08 EUR
Availability: InStock

Hikvision dome DS-2CD2386G2-IU F2.8 (balta, 8 MP, 30 m. IR, AcuSense)

€364.08

MP (MegaPixel): 8 MP
Objektyvas: 2.8 mm, horizontalus FOV: 111°
Technologija: AcuSense
Integruotas mikrofonas: Taip
Naktinis pašvietimas: 30 m. IR
Vieta microSD talpai: Taip, 256GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-PT6
Lauko/vidaus: Lauko

Sensorius	1/1.8″ Progressive Scan CMOS
Min.apšvietimas	Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
Užrakto greitis	1/3 s to 1/100,000 s
Lėtas užraktas	Yes
Diena / naktis	IR Cut Filter
Kampo valdymas	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
WDR	120 dB
Objektyvas	Fixed lens, 2.8/4/6 mm
Diafragma	F1.6
FOV	2.8 mm, horizontal FOV: 110.7° , vertical FOV: 59.1° , diagonal FOV: 131° 4 mm, horizontal FOV: 87.1° , vertical FOV: 47.4° , diagonal FOV: 101.8° 6 mm, horizontal FOV: 50.8° , vertical FOV: 27.6° , diagonal FOV: 60°
Montavimas	M16
IR atstumas	Up to 30 m
Bangos ilgis	850 nm
Max.raiška	3840 × 2160
Pagrindinis srautas	50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
Antrinis srautas	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Tretinis srautas	50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Vaizdo suspaudimas	Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Vaizdo bitų greitis	32 Kbps to 16 Mbps
Vaizdo kodavimas	H.264 and H.265 encoding support
Garso suspaudimas	G.711/G.722.1/G.726/MP2L2/PCM/MP3
Garso bitų greitis	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Aplinkos triukšmo filtraimas	Yes
Garso dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pagrindiniai įvykiai	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Papildoma apsauga	Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
ROI	1 fixed region for main stream, sub-stream and third stream
Susiejimas	Upload to FTP/NAS/memory card, notify surveillance center, send email, alarm output, audible warning, trigger capture
Vaizdo gerinimas	BLC, HLC, 3D DNR
Vaizdo nustatymas	Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night perjungimas	Day/Night/Auto/Schedule
TInklo saugykla	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Apsauga	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Transliavimas	Up to 6 channels
User/Host	Up to 32 users, 3 levels: administrator, operator and user
Kliento programinė įranga	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Ryšio sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Garsas	Built-in microphone
Vidinė atmintis	Built-in micro SD slot, up to 256 GB
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Cheminių medžiagų sertifikatai	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	Ingress protection: IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
Programinės įrangos kalbos	32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Pagrindinės funkcijos	Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Reset	Reset via reset button on camera body, web browser and client software
Startas ir darbo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Saugyklos sąlygos	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Maitinimas	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Suvartojimas	12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Medžiaga	Metal
Išmatavimai	Camera: Φ 138.3 × 126.3 mm (Φ 5.4″ × 5″) With package: 170 × 170 × 150 mm (7″ × 7″ × 5.9″)
Svoris	Camera: approx. 740 g (1.6 lb.) With package: approx. 1060 g (2.3 lb.)
