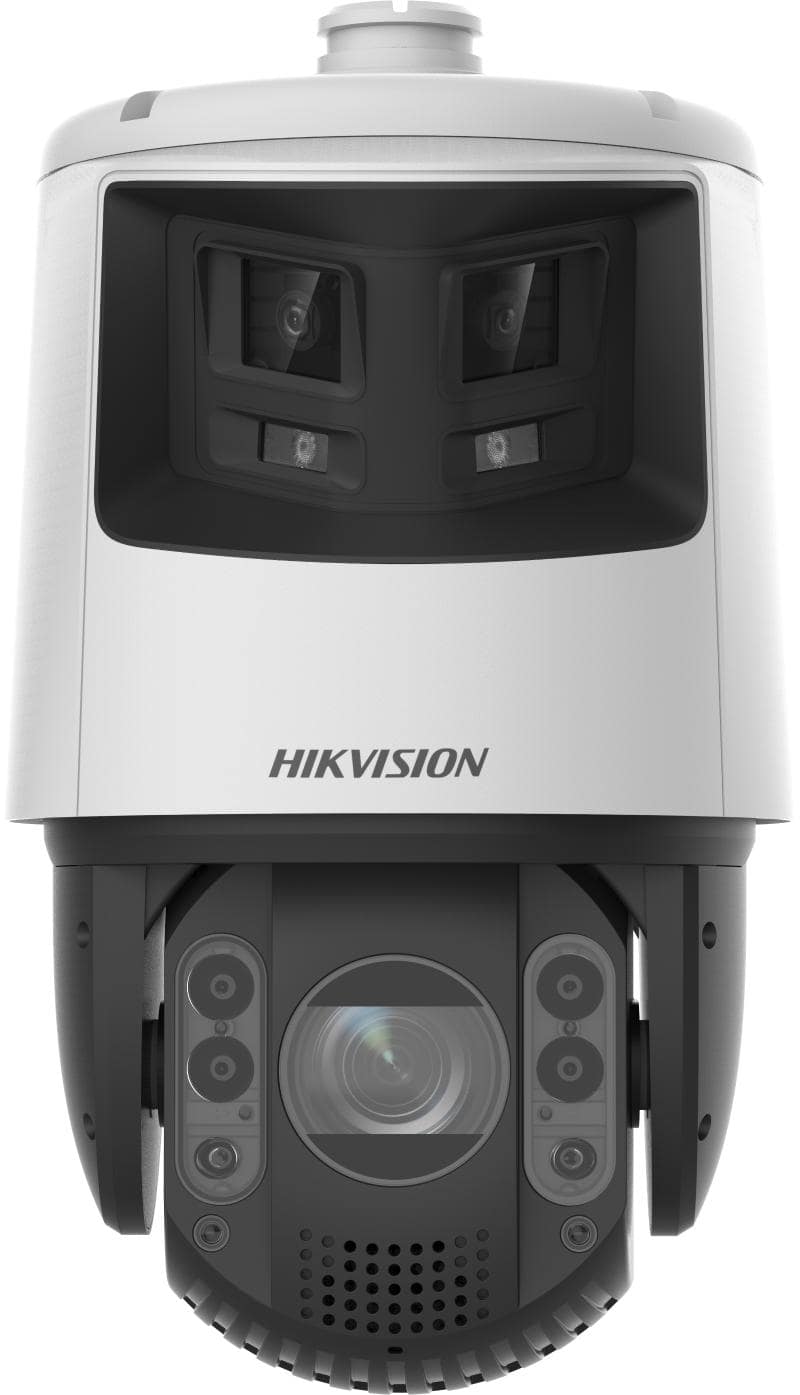

- Kamera
- Sensorius[Panoramic channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
- Maks. rezoliucija[Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
- Min. apšvietimas[PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
- Užrakto greitis1 s to 1/30,000 s
- Day & NightIR cut filter
- Priartinimas32 × optical,16 × digital
- Lėtas užraktasyes
- HLCyes
- 3D DNRyes
- Lęšis
- FOV[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
- FOV[Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° [PTZ channel] horizontal field of view: 60.2° to 2.3°
- FokusavimasAuto,semi-auto,manual
- Diafragama[Panoramic channel] F1.0, [PTZ channel] Max. F1.5
- Priartinimo greitis[Panoramic channel] No, [PTZ channel] approx. 5.6 s
- Apšvietimas
- Papildomo apšvietimo diapazonasIR distance: up to 200 m
- White Light DistancePanoramic channel: 30 m
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90°
- Pan greitisPan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
- Tilt greitisTilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proporcingas PanYes
- Iš anksto išsaugoti nustatymai300
- Išsaugotų nustatymų sustabdymasYes
- Patruliavimas8 patrols, up to 32 presets for each patrol
- Išsaugotų rėžimų skenavimas4 pattern scans, record time over 10 minutes for each scan
- Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
- 3D pozicijaYes
- PTZ būsenos vaizdavimasYes
- Užduočių grafikasPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,aux output,dome adjust
- Išjungimo atmintisYes
- Vaizdas
- Pagrindinis srautas[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
- Antrinis srautas[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240),[Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)
- Trečias srautas[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240),[Panoramic channel] No
- Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 16384 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Scalable Video Coding (SVC)yes
- Region of Interest (ROI)fixed region
- Garsas
- Garso suspaudimasG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
- Garso bitų greitis32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3)
- Garso atrankos dažnis8 kHz,16 kHz,32 kHz,48 kHz
- Pašalinių garsų šalinimasyes
- Internetas
- ProtokolaiTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets,SRTP
- Tiesioginis vaizdo žiūrėjimas20
- APIISUP,SDK,ISAPI,Open Network Video Interface (Profile S, Profile G, Profile T)
- User/Host32
- SaugumasPassword protection,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),IP address filter
- Vidinė atmintisNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
- KlientasiVMS-4200,HikCentral Pro,Hik-Connect
- NaršyklėIE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaisaturation, brightness, contrast, sharpness
- Diena/Naktis režimasDay,night,auto,schedule
- Wide Dynamic Range (WDR)[Panoramic channel] Digital WDR, [PTZ channel] 120 dB
- SNR＞52dB
- Rūko šalinimasyes
- Vaizdo stabilizavimasyes
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- Privatumo kaukė24 programmable polygon privacy masks, mask color or mosaic configurable
- Regioninis fokusavimasyes
- Regioninė ekspozicijayes
- Sąsaja
- Interneto sąsaja1 RJ45 10/100M self-adaptive Ethernet port
- Saugyklos vietaBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Garsas
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,
1 output (line out), line level, output impedance: 600 Ω
- Signalizacija2 input(s), 1 output(s)
- PerkrovimasYes
- Funkcijos
- Pagrindinės funkcijosMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
- Išmaniosios funkcijosLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan),audible warning,white light flashing
- Išmanus sekimasManual tracking,auto-tracking
- Išmani jungtispanorama linkage, tracking takeover, track in turn
- Išmaniosios funkcijos
- Veido atpažinimasSupport detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face
- Pagrindinis
- Sistemos parametrai24 VAC, Max. 60 W, Hi-PoE
- DydisØ222.3 mm × 387.2 mm (Ø8.75″ × 15.2″)
- SvorisApprox. 6 kg (13.23 lb.)
- MedžiagaADC12,Plastic,PC+10%GF
- Darbo sąlygos-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Pagrindinės funkcijosmirror,watermark,password protection,IP address filter
- Rasos šalinimasYes
- Patvirtinimai
- ApsaugaIP66 (IEC 60529-2013)
