- Sistema
- VariklisNA
- MCBF≥ 3 million times
- Internetas
- Susisiekimo protokolasISAPI
- Laidinis internetas10/100 Mbps self-adaptive Ethernet
- Sąsaja
- Interneto sąsaja1
- Užrakto valdymas2
- Išėjimo mygtukas2
- Signalizacijos išvestis2
- TAMPERNA
- RS-4854
- RS-2324
- WiegandNA
- Fire alarm input1
- Case input2
- Hardware
- Access controllerSupplied
- Power supply for face recognition moduleSupplied for“Pg”type
- Klaviatūros pultelis
Not supplied
Need order separately
- Talpa
- Kortelių talpa500,000
- Įvykių talpa500,000
- Autentifikavimas
- Kortelės tipasEM/M1/Desfire/Felica
- Funkcijos
- Configuration via Web browserSupport
- Configuration via mobile Web browserSupport
- QR code recognitionOptional
- Garso raginimasOptional
- Keypad configurationSupport
- Pagrindinis
- Throughput
More than 35 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Lane width550 mm
- Barrier materialSUS304 stainless steel pipe
- Pedestal materialSUS304 stainless steel thickness 1.2 mm(0.05″)
- Sistemos parametrai
Switching power supply: 100 to 240 VAC; 50 to 60 Hz
Power adapter: 100 to 240 VAC; 50 to 60 Hz
- Energijos sunaudojimas45W (stand by)
- Darbinė sąlygos temperatūra
Switching power supply: -20 °C to 65 °C (-4 °F to 149 °F)
Power adapter: -10 °C to 45 °C (14 °F to 113 °F)
- Darbinės sąlygos drėgmė0% to 95% (No condensing)
- IP apsaugos lygisNA
- Dydis
Without package: 502 mm × 202 mm × 1010 mm (19.8″ × 8.0″ × 40.0″)
With package: 745 mm × 365 mm × 1120 mm (29.3 × 14.4″ × 44.1″)”
- Svoris
Without package: 26 kg (57.3 lb)
With package: 31 kg (68.41 lb)
- PatvirtinimaiCE/CE-LVD/CB/RoHS/REACH/WEEE
- Konfigūracija
- Lane width550
- Pedestal length502 mm
- Module selectionYES
- Pedestal width202 mm
- Wall distance20mm
- BaseYES
- Barrier materialStainless steel pipe
- Taikymo aplinkaIndoor
- Authentication modeCard;Face;QR code
- Kortelės tipasEM;M1
- Recommended width550
- Base modelDS-K3G411-BASE
- Side pedestalYES
- Side pedestal typefence(130mm)

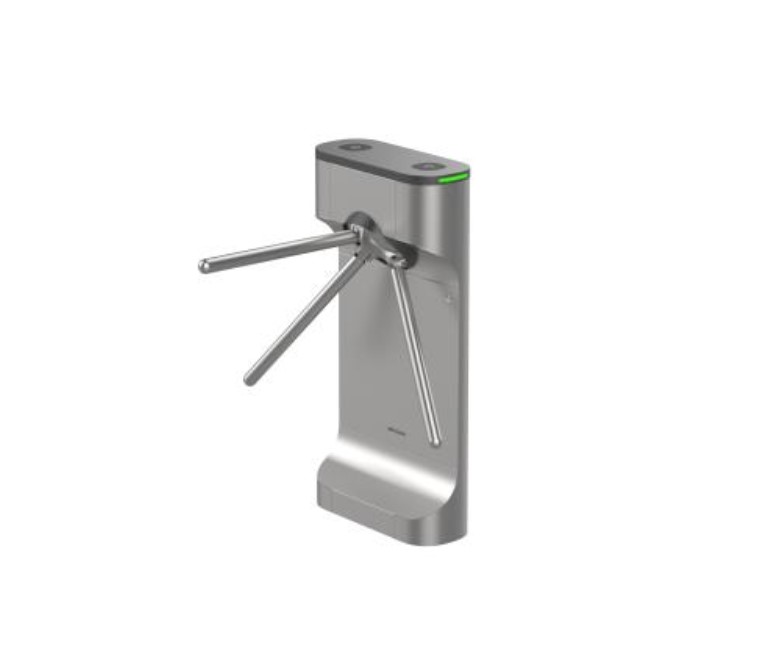

- Product typeTripod Turnstile
- Remote controller type433Mhz;868Mhz
- Movement Protrusion Width29 mm
