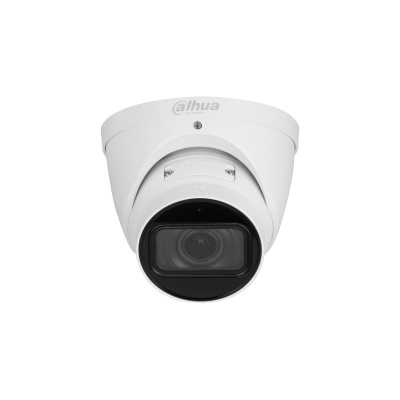

Name: IP kamera Dahua Dome IPC-HDW3549H-AS-PV-S5 2.8mm (Balta, 5MP, 97°, IR LED 50m, IP67)
SKU: TVKIPCHDW3549HASPVS5
Price: 261.25 EUR
Availability: InStock

IP kamera Dahua Dome IPC-HDW3549H-AS-PV-S5 2.8mm (Balta, 5MP, 97°, IR LED 50m, IP67)

€261.25

Tipas: IP kamera
Modelis: IPC-HDW3549H-AS-PV-S5
Prekės ženklas: Dahua
Serija: WizSense
Korpuso tipas: Eyeball
Vaizdo jutiklis: 5 MP
Objektyvas: 2.8 mm (97°)
Apšvietimas: Baltos šviesos LED, IR LED iki 50 m
Garsas: Integruotas mikrofonas, garsiakalbis ir sirena
Vaizdo technologijos: WDR, 3D NR, HLC, BLC
Pažangios funkcijos: SMD 4.0, defog
Ryšys: PoE
Atmintis: SD kortelė iki 256 GB
Atsparumas: IP67

Pagrindinis
Sensorius1/2.7″ CMOS
Maks. rezoliucija2960 (H) × 1688 (V)
ROM256 MB
RAM1 G
Skenavimo sistemaProgressive
Elektroninis užrakto greitisAuto/Manual 1/3 s–1/100,000 s
Min. apšvietimas0.003 lux@F1.0 (Color, 30 IRE), 0.0003 lux@F1.0 (B/W, 30 IRE), 0 lux (Illuminator on)
S/N santykis>56 dB
Apšvietimo atstumasUp to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
Apšvietimo valdymasAuto; Manual
Apšvietimo skaičius1 (IR LED); 1 (Warm light)
Kampo keitimasPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lęšio tipasFixed-focal
Lęšio montavimasM12
FOV2.8 mm; 3.6 mm
Maks. diafragmaF1.0
FOV2.8 mm: H: 97°; V: 70°; D: 128°, 3.6 mm: H: 78°; V: 58°; D: 102°
Diafragmos valdymasFixed
Artimiausias fokusavimas2.8 mm: 1.5 m (4.92 ft), 3.6 mm: 2.2 m (7.22 ft)
DORI Distance (2.8 mm)Detect: 66.0 m (216.54 ft), Observe: 26.4 m (86.61 ft), Recognize: 13.2 m (43.31 ft), Identify: 6.6 m (21.65 ft)
DORI Distance (3.6 mm)Detect: 78.0 m (255.91 ft), Observe: 22.2 m (72.83 ft), Recognize: 15.6 m (51.18 ft), Identify: 7.8 m (25.59 ft)
IVS (Perimetro apsauga)Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)
SMDSMD 4.0
AcuPickDeep learning-based target matching and search for people and motor vehicles
AI SSADeep learning-based image parameter adjustment
Išmanioji paieškaWorks with Smart NVR for refined intelligent search and event extraction
Vaizdo suspaudimasH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Išmanusis kodekasSmart H.265+; Smart H.264+
AI kodavimasAI H.265 (Compression rate ≥25%), AI H.264 (Compression rate ≥25%)
Vaizdo kadrų dažnisMain stream: 2880 × 1620/2960 × 1668@(1–20 fps), 2688 × 1520@(1–30 fps), Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps), Third stream: 1920 × 1080@(1–25/30 fps)
Srauto pajėgumas3 streams
Rezoliucija5M (2880 × 1620/2960 × 1668), 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296/2048 × 1536), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Bitų greičio kontrolėCBR/VBR/ABR
Vaizdo bitų greitisH.264: 3 kbps–16384 kbps, H.265: 3 kbps–16384 kbps
Dienos/nakties režimasAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
Scene Self-adaptation (SSA)Yes
Baltos spalvos balansasAuto; Natural; Street lamp; Outdoor; Manual; Regional custom
Stiprinimo valdymasAuto
Triukšmo mažinimas3D NR
Judesių aptikimasOFF/ON (4 areas, rectangular)
Intereso sritisYes (4 areas)
Išmanusis apšvietimasYes
Rūko šalinimasYes
Vaizdo rotacija0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
VeidrodisYes
Privatumo maskavimas4 areas
LDCYes
Integruotas mikrofonasYes
Įmontuotas garsiakalbisYes
Garso suspaudimasPCM; G.711a; G.711Mu; G.726; G.723
Pavojaus įvykisNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
Tinklo prievadasRJ-45 (10/100 Base-T)
SDK ir APIYes
ProtokolaiIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
SuderinamumasONVIF (Profile S; Profile G; Profile T); CGI
Naudotojas/prievadas20 (Total bandwidth: 64 M)
SaugyklaFTP; SFTP; Micro SD card (support max. 256 GB); NAS
NaršyklėIE 9/11; Chrome; Firefox
Valdymo programinė įrangaSmart PSS Lite; DSS; DMSS
Mobilioji programaiOS; Android
Kibernetinis saugumasVideo encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
SertifikataiCE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Garso įvestis1 channel (RCA port)
Garso išvestis1 channel (RCA port)
Signalizacijos įvestis1 channel in: wet contact, 5 mA 3–5 VDC
Signalizacijos išvestis1 channel out: wet contact, 300 mA 12 VDC
Maitinimas12 VDC; PoE
Energijos sunaudojimasBasic: 3.7 W (12 VDC); 4.8 W (PoE), Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE)
Darbo sąlygos (temperatūra)–40 °C to +60 °C (–40 °F to +140 °F)
Darbo sąlygos (drėgmė)≤95%
ApsaugaIP67
Korpuso medžiagasMetal
Produkto dydisΦ122.0 mm × 110.9 mm (4.80″ × Φ4.37″)
Svoris be įpakavimo0.75 kg (1.65 lb)
Svoris su įpakavimo0.92 kg (2.03 lb)
