| Mobilus ryšys | |
| Mobilus modulis | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
| Statusas | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| SMS/skambučiai | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Juodasis/baltasis sąrašas | Operator black/white list |
| Juostos valdymas | Band lock, Used band status display |
| APN | Auto APN |
| Tiltas | Direct connection (bridge) between mobile ISP and device on LAN |
| Pralaidumas | Gateway assigns its mobile WAN IP address to another device on LAN |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| Ethernetas | |
| LAN | 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| Tinklas | |
| Tinklo protokolai | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Nukreipimas | Static routing |
| Sujungimo valdymas | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Ugniasienė | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| QoS / SQM (planuotas) | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supported >25 service providers, others can be configured manually |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| Galia | |
| Prijungimas | 4 pin industrial DC power socket |
| Įvesties įtampų diapozonas | 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max |
| PoE (pasyvus) | Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
| Galios suvartojimas | < 5 W |
| Fiziniai parametrai | |
| Korpuso medžiaga | Aluminum housing |
| Matmenys (W x H x D) | 74.5 x 25 x 64.4 mm |
| Svoris | 134 g |
| Montavimo galimybės | Bottom and sideways DIN rail, Flat surface |
| Aplinkos sąlygos | |
| Darbinė temperatūra | -40 °C to 75 °C |
| Atsparumas drėgmei darbo metu | 10 % to 90 % non-condensing |
| Apsauga | IP30 |
| Saugumas | |
| Standartas | IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |
Išparduoda

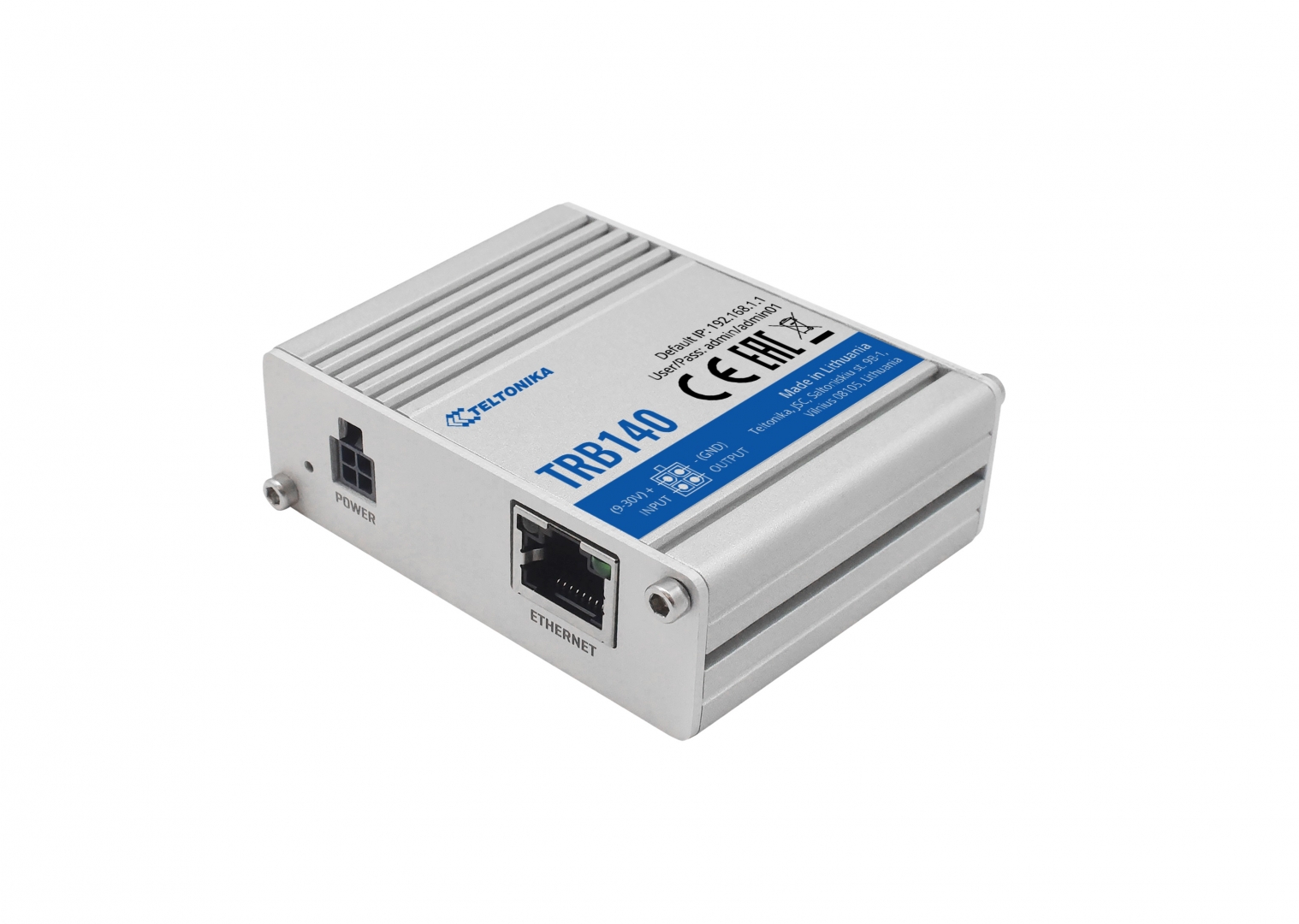

TELTONIKA pramoninė tinklo sąsaja LTE TRB140 – 4GLTE
€153.38
- Sujungimas: 4G/LTE (Cat 4), 3G, 2G
- Aliuminis korpusas
- Įtampos diapozonas: 9-30V
Out of stock
Description
Additional information
| Gamintojas |
|---|
